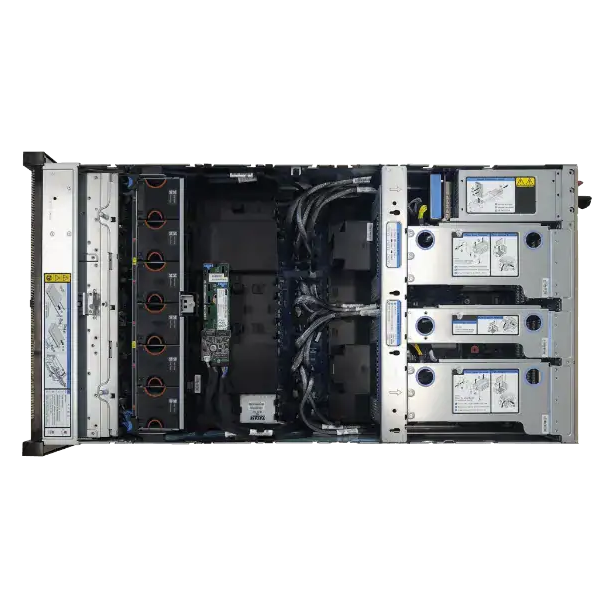

Lenovo ThinkSystem SR860 V3 4U Rack Server with 4th Gen Intel Xeon Scalable Processors, 16TB TruDDR5 Memory, and 24x NVMe Drives

Product Categories
Beijing Core-Net Techonology Co., Limited
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Lenovo ThinkSystem SR860 V3 4U Rack Server with 4th Gen Intel Xeon Scalable Processors, 16TB TruDDR5 Memory, and 24x NVMe Drives

  • 1
  • 2
  • 3

Brand Name : Lenovo

Model Number : Lenovo ThinkSystem SR860 V3 4U Rack Server

Place of Origin : China

MOQ : 1/set

Payment Terms : T/T

Supply Ability : 50pcs per week

Delivery Time : 2-3 work days

Form Factor : 4U rack server

Processor : Two or four 4th Gen Intel® Xeon® Scalable processors, up to 350W

GPU Support : Up to 2x double-width 350W GPUs or 4x single-width 75W GPUs

Memory : Up to 16TB of TruDDR5 memory in 64x slots; Memory speeds up to 4800MHz

Drive Bays : Up to 24x 2.5" drives; Supports up to 24x direct connection NVMe drives; 2x 7mm or 2x M.2 drives for boot

Expansion Slots : Up to 12x (8x Gen5 + 4x Gen4) or 7x (6x Gen5 + 1x Gen4) or 12x Gen4 or 9x Gen4 expansion slots

Network Interface : 2 Dedicated OCP 3.0 slots supporting 1GbE, 10GbE, 25GbE or 100GbE

Power : 2x Platinum or Titanium hot-swap power supplies; N+N redundancy supported

System Management : Lenovo XClarity Controller; Redfish support

Contact Now

Next-Gen Workload Ready

The SR860 V3 scales up to four 4th Gen Intel® Xeon® Scalable processors and up to four enterprise-grade GPUs. It easily handles enterprise virtualization, workload consolidation, in-memory computing such as SAP HANA, databases, and GPU-intensive applications such as AI and 3D modeling.

Maximum Performance Paired with Minimum Effort

The Lenovo ThinkSystem SR860 V3 supports more CPU cores*, capacity*, and offers 50% more bandwidth* from the latest DDR5 memory. Equipped with next-gen technology that eliminates bottlenecks from expansion slots to NVMe drives.

Superior Security and Exceptional RAS

The LenovoSR860 V3 server is at the top of RAS (Reliability, Availability, and Serviceability) list. Features like Predictive Failure Analysis, error detection, self-healing, and Light path diagnostics easy for failure identification. XClarity provides simple and standardized management, reducing provisioning time by 95% compared to manual operations.

Form Factor

4U

Processor

Two or four 4th Gen Intel® Xeon® Scalable processors, up to 350W Mesh topology with 3x UPI links; With Up to 4x QAT, DLB, IAA and DSA Accelerators

GPU Support

Up to 4x double-width 350W GPUs or 8x single-width 75W GPUs

Memory

Up to 16TB of TruDDR5 memory in 64x slots; Memory speeds up to 4800MHz.

Drive Bays

Up to 48x 2.5" drives; Supports up to 24x direct connection NVMe drives; 2x 7mm or 2x M.2 drives for boot

Expansion

Up to 16x (12x Gen5 + 4x Gen4) or up to 18x Gen4 or 4x Gen4 PCIe expansion slots

Front: VGA, 1x USB 3.1, 1x USB 2.0

Rear: 2x USB 3.1, Serial port, VGA port, 1GbE dedicated management port

Network Interface

2 Dedicated OCP 3.0 slot supporting 1GbE, 10GbE, 25GbE or 100GbE

Power

Up to 4x Platinum or Titanium hot-swap power supplies; N+N redundancy supported

High Availability

PFA; hot-swap/redundant drives and power supplies; redundant fans; internal light path diagnostic LEDs; front-access diagnostics via dedicated USB port; optional External Diagnostics Panel Handset with LCD display

HBA/RAID Support

Support for ThinkSystem PCIe RAID/HBA cards

System Management

Lenovo XClarity Controller; Redfish support
